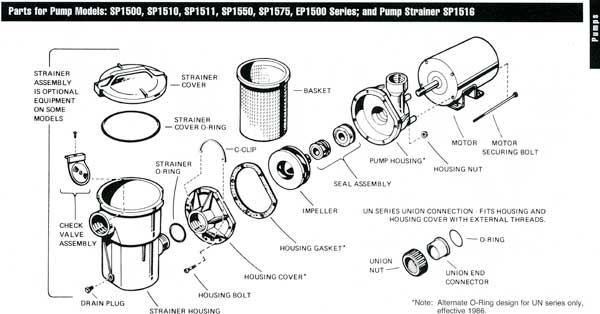

Diagram
Number
|
Manufacturer
p/n |
Description
|
Sku
#
|
Buy
Me
|
| |
SPX1500AA |
Pump housing |
PU-06060 |
|
| |
SPX1500B |
Housing cover |
PU-06062 |
|
| |
SPX1500KA |
Heal assembly |
PU-00710 |
|
| |
SPX1500H |
Housing gasket |
PU-00712 |
|
| |
SPX1500N2 |
Housing bolt, No. 10-24 hex. head |
|
|
| |
SPX1500Y2 |
Housing nut, No. 10-24 hex. |
|
|
| |
SPX1500E |
Impeller 1/2 h.p. |
PU-06064 |
|
| |
SPX1500F |
Impeller 3/4 h.p. |
PU-00715 |
|
| |
SPX1500CAP |
Strainer housing with basket |
PU-00719 |
|
| |
SPX0710Z3 |
Strainer cover O-ring - for solid cover ( 1978 and prior) |
PU-06066 |
|
| |
SPX1500D2A |
Strainer cover, with O-ring |
PU-00720 |
|
| |
SPX1500P |
Strainer cover O-ring for clear cover
|
PU-00717 |
|
| |
SPX1250RA |
Strainer basket (1992 and prior) |
PU-06068 |
|
| |
SPX1500W |
Strainer O-ring |
PU-00716 |
|
| |
SPX1700FG |
Drain plug with gasket |
PU-06070 |
|
| |
SPX1500X1 |
Shim for vertical discharge (1992 and prior) |
|
|
| |
SPX1500HWA |
Seal assembly, housing gasket and Strainer O-ring kit |
PU-06072k |
|
| |
SPX1515C |
Strainer housing C-clip (2000-2003) |
|
|
| |
SPX1515CN |
Strainer housing C-clip (2004- ) |
|
|
SPN1500UN parts same as SP1500 series except as listed below: |
| |
|
|
|
|
| |
SPX1500AAT |
Pump housing with external thread (1985 and prior) |
|
|
| |
SPX1501AAT |
Pump housing with external thread- O-ring style |
|
|
| |
SPX1500B1T |
Housing cover with external thread (1985 and prior) |
|
|
| |
SPX1501BT |
Housing cover with external thread O-ring style |
|
|
| |
SPX1500L |
impeller 1 h.p |
|
|
| |
SPX1082Z5B |
O-ring pump housing |
|
|
| |
SPX1500JS |
Union end connector-socket |
|
|
| |
SPX1500JT |
Union end connector- threaded |
|
|
| |
SPX1500G |
Union nut |
|
|
| |
SPX1495Z1 |
O-ring, end connector |
|
|
| Notice
/ Important:
When adding items to the shopping cart from
this page, please make sure that the item added is the same as listed
on this page. Occasionally part numbers will change and will not
be reflected on this page |
