Baracuda® Beta, Pool Cleaner Parts List and Diagram

Baracuda® Beta, Pool Cleaner Parts Diagram

Baracuda Beta: Barauda Beta parts list for easy ordering of parts for your Barauda Beta.

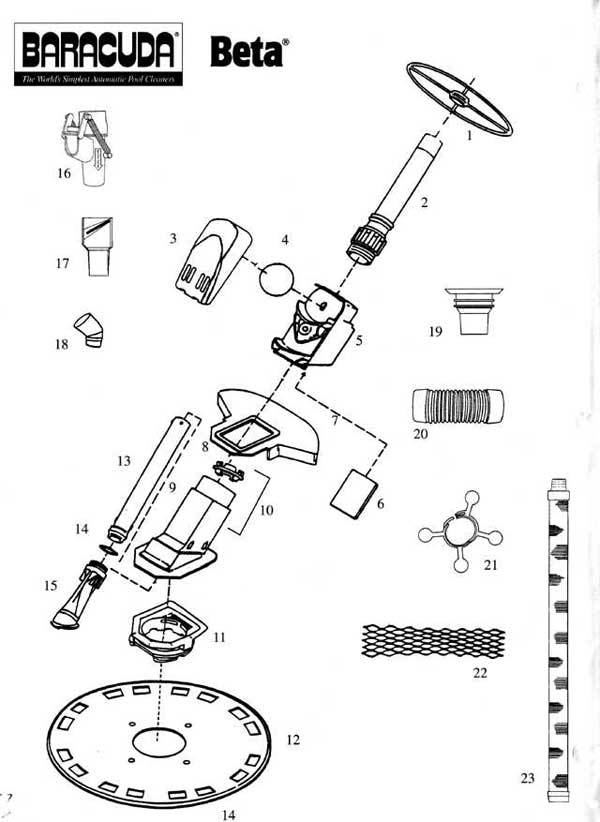

Baracuda Beta Parts Diagram

Baracuda® Beta, Pool Cleaner Parts List

Baracuda Beta

Key
Model
Description SKU #
Purchase
1
46055
Beta Wheel Deflector 12" Turquoise AC-02395
2
74055
Beta Outer Extension Pipe w/ handnut AC-02396
3
50210
Beta Outer Body top AC-02397
4
80200
Beta Float Ball AC-02398
5
53005
Beta Outer body bottom - White
6
90147
Beta Weight AC-02316
7
49855
Beta Apron Turquoise AC-02324
8
74000
Beta Compression Ring AC-02422
10
61305
Beta Inner Body w/compression Ring (Exchange Only)
11
72955
Beta Footpad - Turquoise AC-02346
12
48140
Beta Slotted Disc - Yellow
13
73406
Beta Thread inner extension pipe AC-02349
14
81600
Beta Diaphragm retaining ring AC-02434
15
81700
Beta Diaphragm AC-02414
16
60050
Beta Flow Keeper Valve Old p/n 44530
17
44800
Pool Pulse replaces 44805 AC-02440
18
22425
45 degree Elbow AC-02442
19
64700
Above ground Valve Cuff
20
33205
Beta - 4-1/2" connector - white
21
24209
Beta Hose Deflector White
22
33800
Hose Protector AC-02444
23
21205
Hose Kit 11X1 Meters AC-02446

Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page

Terms: NLA = No Longer Availble.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items
