Zodiac Baracuda® Pacer After 2004 Pool Cleaner Parts List

Zodiac Baracuda® Pacer After 2004 Pool Cleaner Parts Diagram

Baracuda Pacer

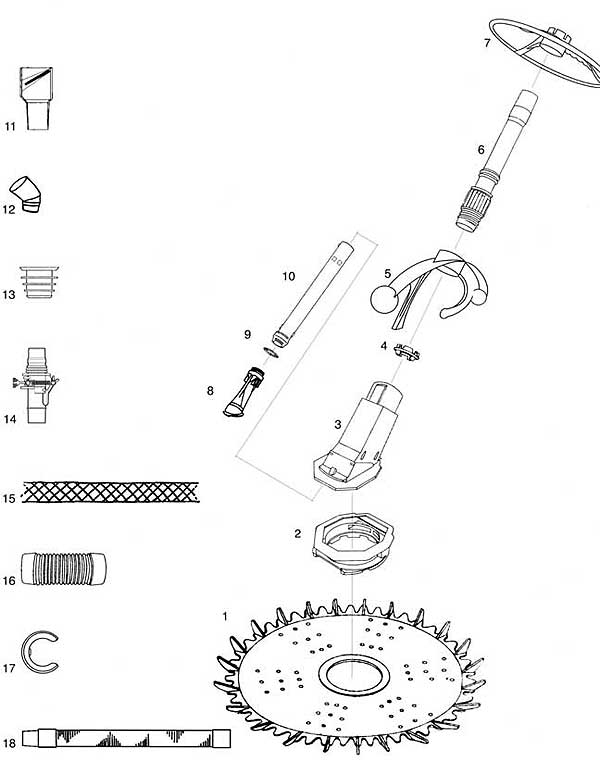

Baracuda Pacer, After 2004 Parts Diagram

Zodiac Baracuda® Pacer After 2004 Pool Cleaner Parts List

Baracuda Pacer Parts

Key Model Description Product ID Buy Me
1 W70032 Finned Disc -- --
-- W69721 Foot Pad
-- --
3 W69982 Inner Body -- --
4 W74000 Compression Ring AC-02422
5 W83381 Baracuda® Pacer Inner Body --
6 W69983 Weighted Spur Bumper --
7 W69647 Wheel Deflector 12" --
8 W81701 Diaphragm AC-02436
9 W81600 Diaphragm Retaining Ring AC-02434
10 W56525 Threaded Inner Extension Pipe AC-02349
11 W44800 Pool Pulse AC-02440
12 W90146 45 Degree Elbow AC-02442
13 W63900 Universal Valve Cuff AC-02363
14 W60050 FlowKeeper Valve AC-02438
15 W33800 Hose Protector AC-02444
16 W33160 4-1/2" Hose Connector AC-02342
17 W83247 Hose Weight (Requires 2) AC-02343
18 W20460 Hose Kit 12x1 Meter Aqua AC-02446
18 -- Hose 1x1 Meter Aqua AC-02446A
Terms: NLA = No Longer Availble.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items

Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page
