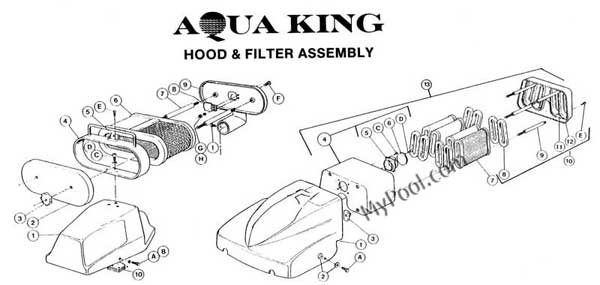

AquaVac Aqua King Hood & Filter Assembly
AquaVac Aqua King, Filter & Hood
Parts Diagram
Key
Model
Description
Product ID
Buy Me
Prior to 1978
1
2302
Hood
--
NLA
A
RCX1713 \
Bolt Hex 8-32 x 1/2"
AC-00112
B
RCX2204C
Washer Flat #10 SS
AC-00166
C
RCX420A
Hex 8-32 SS
AC-00303
D
RCX2121D
Bolt, 1/4-20 x 3/4" SS
AC-00148
2
2402N
Plate, Filter Rear w/Elbow
--
NLA
3
1406
Rod - Filter Tie
AC-00023
NLA
4
2408
Valve Filter
AC-00202
NLA
5
2401
Cartridge Filter, Replace with RCX2500
AC-00204
--
6
2403N
Plate, Filter
--
NLA
7
1405K
Knob - Debris Trap, Replaced By RCX7809
AC-00043
1978 to 1989
1
2302-83
Hood OS
--
NLA
A
RCX2121B
Bolt Hex HD 1/4 - 20 x 3/4" SS
AC-00146
B
RCX2220B
Washer Flat 1/4" SS
AC-00178
2
2403N
Plate, Filter
--
NLA
3
1405K
Knob - Debris Trap, Replaced By RCX7809
AC-00043
4
2301TM
Handle, Top Mount Assyembly
--
NLA
C
RCX2301C
Screw, SHCS 1/4-20 x 1 Inch
AC-00184
D
RCX2220B
Washer Flat 1/4 Inch SS
AC-00178
5
RCX2301D
Rope Bracket
AC-00185
E
RCX1715
Screw RD 10-32 x 1/2"
AC-00116
6
2401
Cartridge Filter, Replace with RCX2500
AC-00204
7
1406
Rod - Filter Tie
AC-00023
NLA
8
2408
Valve Filter
AC-00202
F
RCX1713
Bolt Hex 8-32 x 1/2"
AC-00112
G
RCX420A
Nut Hex 8-32 SS
AC-00303
H
RCX2204C
Washer Flat #10 SS
AC-00166
9
2402TM
Plate, Filter w/Double Elbow
--
NLA
I
RCX2121D
Bolt, 1/4-20 x 3/4" SS
AC-00148
10
2302C
Gasket Spacer. 1972-1977
--
NLA
13
RCX420A
Nut Hex 8-32 SS
AC-00303
1989 to Present
1
3310B
Hood - Granite Plastic , Replaced By RCX3310G
AC-00025
2
RCX3309
Spacer - Hood Mounting
AC-00245
A
RCX2121B
Bolt Hex HD 1/4 - 20 x 3/4" SS
AC-00146
3
RCX3405
Knob - Filter
AC-00253
4
RCX3409
Housing - Filter Assembly
AC-00255
5
RCX3401
Intake - Filter Housing
AC-00250
C
RCX3402
Screw Phil Hd #4 x 3/8" SS
AC-00251
6
RCX3403
Baffle - Filter Housing
AC-00252
D
RCX3402
Screw Phil Hd #4 x 3/8" SS
AC-00251
7
RCX7807
Filter - Cartridge
AC-00040
8
RCX7813
Gasket Foam 1/4 Inch Oval Shaped, Sold Each
AC-00041
9
RCX7808PC
Tie Rod - Filter
AC-00349
10
RCX3416
Plate - Back Assembly
AC-00257
11
3411
Reinforcing Plate
--
NLA
12
3410
Plate Back , Replace with RCX3416
AC-00257
14
RCX3400
Filter Assembly - Complete
AC-00247
Terms:
NLA = No Longer Available.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items
Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page
