American Products Americana II Pool Pump

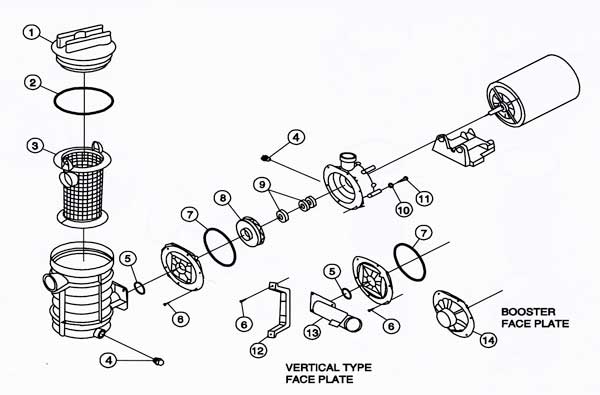

American Products Americana II Pool Pump Parts Diagram

American Products Americana Pool II Pump parts list for easy ordering of parts for your American Products Americana Pool Pump.

American Products Americana II Pool Pump

American Products Americana Pool Pump Parts List

Key
Model
Description
SKU #
Purchase
1
39101100
Pump Lid
PU-19300
2
39101900
Generic O-Ring for Pump Lid
OR-0019
3
39101200
Basket
BA-391012
4
39106800
Pot, Union, Face Plate Wear Ring Assembly
PU-19302
5
39106900
Pot Assembly, Complete
PU-19304
6
57006500
Pot Plug O-ring, Generic
OR-0155
7
98207700
Drain Plug, Universal 1/4 Inch
PU-19306
8
39101600
O-Ring, Volute
OR-0286
9
4680200
Swivel Union Assembly
PU-19308
10
98210400
Screw Face Plate 8-32 x 5/8 Inch, S Series
--

10
98215400
Screw Faceplate 10-24 x 7/8 Inch, C Series
NLA

11a
39806000
Face Plate, Center, Self Drain
NLA

11b
39502500
Face Plate, Side, Self Drain,S Series
PU-19310
11d
39105801
Face Plate, Vertical 180 Degree
NLA

11e
39105802
Face Plate, Vertical
NLA

12
39701800
Wear Ring 1/2 - 1.5 HP
PU-19311
13
39101500
O-Ring Pump
OR-0400
14
39100200
Impeller, 0.5 HP
PU-19312
39100300
Impeller, 0.75 HP
NLA

39100400
Impeller, 1.0 HP
NLA

15
39701200
Generic Seal
MO-09100
16
98207700
Drain Plug, Universal 1/4 Inch
PU-19306
17
98212200
Nut, Pot Union
PU-19313
18
39101800
Bracket
PU-19314
19
39100900
Bracket, Elbow
NLA

20
98215000
# 10 Lock Washer
--

22
0.50 HP Motor

0.75 HP Motor

1.00 HP Motor

Terms: NLA = No Longer Available.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items
Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page
