Astral Filter, Model IGF3024SS

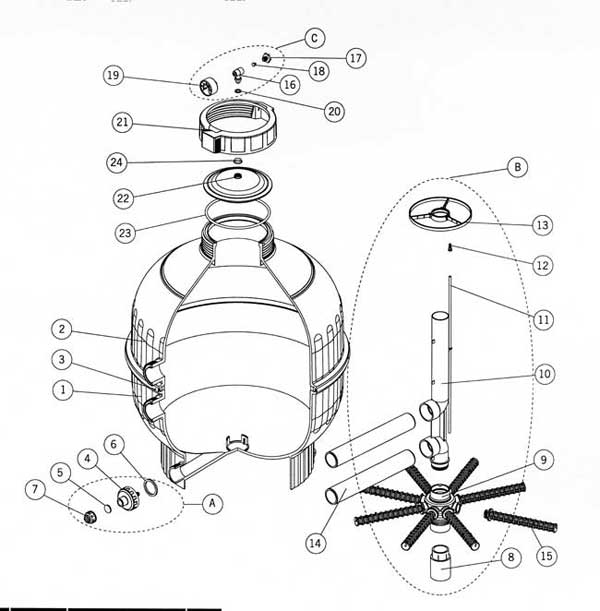

Astral 24 Inch Cantabric Filter Parts Diagram

Astral Cantabric Sand Filter, 24 Inch Side Mount Parts List

Astral Filter, Model IGF3024SS

Key
Model
Description
SKU #
Purchase
A
4404180110
Kit Drain
FI-17207
B
15783R0200
Kit Collector For Filter 24"
FI-17231
C
4404260212
Pressure Gauge KIt
FI-17213
1
15783-0102
Bottom Body
-
2
15783-0103
Top Body 24"
-
3
15781-0402
Hup Cap Cross
-
4
15780R0601
Sand Drain Cap
FI-17215
5
15780R0604
Flat Gasket
FI-17217
6
15780R0603
Flat Gasket
FI-17219
7
15780R0602
Winter Drain Cap
FI-17221
8
15783R0202
Suplement Support For 24"
FI-17076
9
15782R0202
Collector Heas Arms
FI-17232
10
15783R0203
Collector Assembly
FI-17234
11
04586R0405
Internal Pipe Cero 1/4"
FI-17236
12
00497R0411
Air relief Valve
FI-17015
13
15782R0205
Centering Ring
FI-17238
14
15783R0204
2" PVC Pipe
FI-17240
15
00626
Lateral Arm 8 7/8" for 24" Filter
FI-17029
16
00627
Tee Adaptor
FI-17031
17
024030092A
Air Relief {lug
FI-17090
18
00648R0202
O-Ring Relief Plug
FI-17227
19
06671R0401
Pressure Gauge
FI-17242
20
00470R0319
Gasket
FI-17049
21
06671R0204
Top Lock-Ring
FI-17244
22
00555R0201
Transparent Lid
FI-17246
22
00555R0201A
Transparent Lid, Baquacil
FI-17248
23
721R1820060
Filter Top P-Ring
-
24
06671R0205
Reinforcing Ring
FI-17250
