Astral Cantabric Sand Filter, 2 Inch Top Mount, 30 Inches Part List

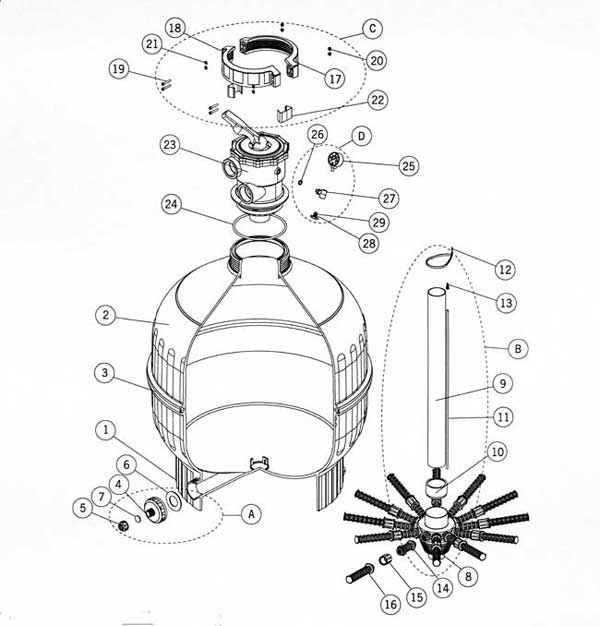

Astral Cantabric Sand Filter,2 Inch Top Mount,30 Inches Part Diagram

Astral Model IGF3030TS-2

Astral 30 Inch Cantabric Filter Parts Diagram

Astral Cantabric Sand Filter, 2 Inch Top Mount, 30 Inches Part List

Astral Model IGF3030TS-2

Key Model Description Product ID Buy Me
4404180110 Kit Drain FI-17207
B 23866R0200 Kit Collector FI-17252
C 22402R0204 Kit Top-Lock Ring FI-17254
- 4404260212 Pressure Gauge Kit FI-17213
1 19822-0102 Bottom Body -- --
2 19822-0103 Top Body -- --
3 15781-0402 Hup Cap Cross -- --
4 15784R0601 Sand Drain Cap FI-17256
5 15780R0602 Water Drain Cap FI-17221
6 15784R0106 Flat Gasket FI-17258
7 15780R0604 Flat Gasket FI-17217
8 22403R0202 Collector Head & Arms -- --
9 6106063 2 1/2" PVC Pipe -- --
10 01928 Reducer Coupling -- --
11 04593R0405 Internal Pipe Cero 1/4" -- --
12 00544R0208 Zip Tie Clamp -- --
13 00497R0411 Air Relief Valve FI-17015
14 00629 Lateral Arm 4" FI-17046
15 00630 Connection Washer FI-17048
16 00627 Lateral Arm 6 1/3" FI-17031
17 15784R0902 Half Top Lock Ring (Bolts) -- --
18 15784R0901 Half Top Lock Ring (Nut) -- --
19 70107R06035 Bolts FI-17260
20 70122R06000 Nut FI-17057
21 70119R06000 Washer PU-17093
22 22402R0207 Clip Cover FI-17262
23 22492 MUltiport Valve 2" FI-17264
24 7211820060 Top Lock-Ring FI-17266
25 06611R0301 Pressure Gauge -- --
26 00470R0319 Gasket FI-17049
27 00555R0401 Tee Adaptor FI-17047
28 024030092A Air Relief Plug FI-17090
29 00648R0202 O-Ring Air Relief Plug FI-17227

  NLA = No Longer Availble.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items

Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page
