Polaris 480 Pro Pool Cleaner Parts List and Diagram

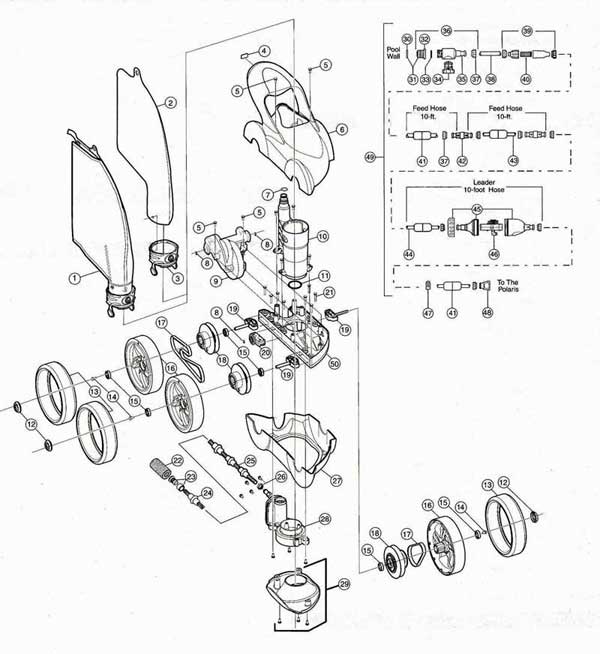

Polaris 480 Pro Pool Cleaner Parts Diagram

Polaris 480 Pro Pool Cleaner

Polaris 480 Pro Pool Cleaner Parts List and Diagram

Polaris 480 Pro Pool Cleaner Parts List

Polaris 480 Pro Pool Cleaner

Key
Model
Description
SKU #
Purchase
1
48133 Disposable Bags(3) with Collar
AC-04490
48057 All Purpose Super Bag Double Zippered Bag With Tail Scrubber
AC-04487
48129 Zippered Leaf Bag
AC-04496
48135 Zippered All Purpose Bag With Collar
AC-04491
2
48133 Disposable Bag (3) without Collar
AC-04490
3
48130 Bag Clip Assembly
AC-04488
4
48047 License Plate With Logo
AC-04482
5
C40 Screw, 10-32 x 3/8" SS Pan Head
AC-04243
6
48003 Upper Housing/Handle Assembly
AC-04467
7
48141 O-Ring Feed Hose Connector
AC-04494
8
91005107 e-Clip Stainless Steel
AC-04806
9
48020 Gear Box Assembly
AC-04473
10
48004 Vacuum Tube Feed Pipe
AC-04464
11
48016 O-ring Water Management System Upper to Feed Pipe
AC-04471
12
48033 Hubcap
AC-04477
13
48032 Wide Trax Tire
AC-04476
14
48036 Wheel Lock Screw
AC-04480
15
48034 Bushing
AC-04478
16
48031 Wheel
AC-04475
17
48006 Chain Kit
AC-04465
18
48035 Wheel Spocket Kit
AC-04479
19
48060 Axle Block, Wheel
AC-04484
20
48050 Idler Tensioner Assembly
AC-04483
21
48045 Pan Head Screw With Star Washer, 10-32 x 3/8 Inches, SS
AC-04481
22
91003105 Sweep Hose Scrubber
AC-04795
23
B25 Orifice Tip With Guard
AC-04222
24
B10 Wear Rings
AC-04217
25
B5 Sweep Hose Complete
AC-04216
26
48019 Sweep Hose Nut
AC-04472
27
48002 Lower Housing
AC-04463
28
48010 Water Management Assembly with O-Ring
AC-04469
29
48008 Vacuum Plate Assembly
AC-04468
30
1011200 UWF Restrictor Disk, Red, Blue, Black
AC-04955
31
1010800 UWF Restrictor Kit
AC-04910
32
650000 Universal Wall Fitting (UWF)
AC-04653
33
650500 O-RING, UWF/QD
AC-04656
34
91009002 Pressure Relief Valve (Complete)
AC-04888
35
D29 Quick Disconnect, UWF
AC-04314
36
91009001 UWF Connector Assembly
AC-04887
37
D15 Nut, Feed Hose
AC-04305
38
D44 Adaptor Hose, 8-1/2 Inches

39
48080 In-Line Filter Assembly
AC-04485
40
48222 Screen, In-Line Filter Assembly
AC-04495
41
D10 Float Feed Hose
AC-04303
42
D20 Swivel Ball Bearing
AC-04307
43
D45 Feed Hose, White, 10 feet
AC-04325
44
D50 Feed Hose, Clear, 10 feet
AC-04327
45
G52 Backup Valve (Complete), Replaces G-41
AC-04402
46
G53 Mechanism for G-52
AC-04403
47
48136 Bag Clasp
AC-04492
48
48140 Feed Hose Connector Assembly
AC-04493
49
48070 Feed Hose Assembly
AC-04486
50
48001 Frame, Exchange Only, Call Polaris
AC-04462
G54 Case Kit for G-52
AC-04404
G57 Collar, Back Up Valve
AC-04406
G58 O-ring Kit For Backup Valve
AC-04407
48210 Tune-Up Kit: Includes; 48135 (1), 48130 (1), 48141 (1), 48033 (3), 48032 (3), 48036(3),48034 (6)


48031 (3), 48035 (3), ,48060(3), 48050 (1), 9-100-3105 (1)l 48136 (1)



Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page

Terms: NLA = No Longer Availble.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items
